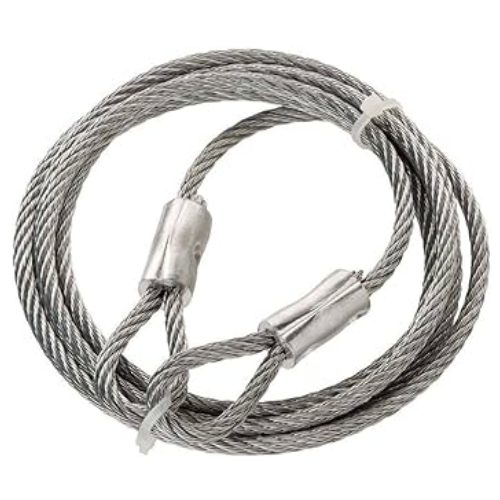

High-Tensile Steel Wire Rope | Galvanized & Stainless Steel (All Constructions)
Industrial-grade Steel Wire Ropes engineered for heavy-duty lifting, lashing, and structural rigging. Available in various constructions like 6×19, 6×36, and 8×19 with Fiber or Steel cores, specifically designed for the demanding environments of Mumbai’s logistics and shipping hubs.
Description
At Shreenath Enterprises, we provide high-performance Wire Ropes that serve as the backbone for lifting and securing operations. Our ropes are manufactured using high-carbon steel and are available in Galvanized (GI), Ungalvanized, and Stainless Steel (SS 304/316) finishes to ensure maximum service life and resistance to corrosion in saline marine environments.
Whether you are looking for flexible ropes for cranes or high-strength cables for heavy lashing at the Nhava Sheva port, our range covers all major industrial specifications. We offer ropes with both Fiber Core (FC) for enhanced flexibility and Independent Wire Rope Core (IWRC) for superior strength and crush resistance.
Key Features:
-
Material: High-carbon steel, Galvanized (GI), or Stainless Steel (SS 304/316).
-
Core Types: Fiber Core (FC) for flexibility or Steel Core (IWRC) for high breaking loads.
-
Finish: Hot-dipped galvanized for ultimate rust protection.
-
Applications: Ideal for cranes, elevators, bridge suspension, and general industrial lashing.
Wire Rope Construction & Strength Table
The following table provides the Minimum Breaking Load (MBL) for standard 1960 N/mm² grade galvanized wire ropes.
| Diameter (mm) | Construction | Core Type | Weight (kg/100m) | Approx. Breaking Load (kN) |
| 6 mm | 6×19 | IWRC | 15.0 | 22.8 |
| 8 mm | 6×19 | IWRC | 26.0 | 40.5 |
| 10 mm | 6×36 | IWRC | 41.0 | 63.0 |
| 12 mm | 6×36 | IWRC | 59.0 | 91.0 |
| 16 mm | 6×36 | IWRC | 105.0 | 162.0 |
| 20 mm | 6×36 | IWRC | 164.0 | 253.0 |
| 24 mm | 6×36 | IWRC | 236.0 | 364.0 |
